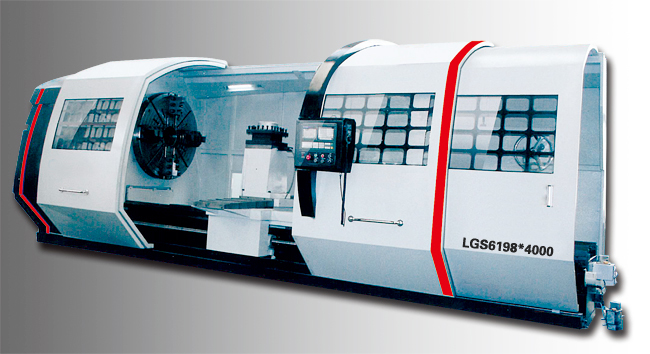

TYK6128/TYK6148/TYK6168/TYK6198/TYK6208型 數控車床
數控系統：西門子系統、法那克系統、華中系統、廣數系統等國產或進口系統可根據用戶選配。 型號 MODEL TYK6128 TYK6148 TYK6168 TYK6198 TYK6208 產品編號 Code No. C1312200 C1314200 C1316200 C1319200 C1320200 床身上*大回轉直徑 Max swing over bed Ø1280mm Ø1480mm Ø1680mm Ø1980mm Ø2080mm 橫拖板*大回轉直徑 Max swing over cross slide Ø840mm Ø1040mm Ø1240mm Ø1540mm Ø1640mm 頂尖距 Center distance 2-16M 2-16M 2-16M 2-16M 2-16M 主軸孔徑 Spindle hole Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm 床身寬度 Bed width 1100mm 1100mm 1100mm 1100mm 1100mm 尾座套筒直徑 Diameter of tailstock sleeve Ø260mm 刀架位移*大距離 Max distance of moving tool-post 縱向 Longitude 兩頂尖距 Admits between -600mm 橫向 Transverse 800mm 800mm 800mm 800mm 800mm...
分享
相關產品
描述
數控系統：西門子系統、法那克系統、華中系統、廣數系統等國產或進口系統可根據用戶選配。
| 型號 | MODEL | TYK6128 | TYK6148 | TYK6168 | TYK6198 | TYK6208 |
| 產品編號 | Code No. | C1312200 | C1314200 | C1316200 | C1319200 | C1320200 |
| 床身上*大回轉直徑 | Max swing over bed | Ø1280mm | Ø1480mm | Ø1680mm | Ø1980mm | Ø2080mm |
| 橫拖板*大回轉直徑 | Max swing over cross slide | Ø840mm | Ø1040mm | Ø1240mm | Ø1540mm | Ø1640mm |
| 頂尖距 | Center distance | 2-16M | 2-16M | 2-16M | 2-16M | 2-16M |
| 主軸孔徑 | Spindle hole | Ø130mm | Ø130mm | Ø130mm | Ø130mm | Ø130mm |
| 床身寬度 | Bed width | 1100mm | 1100mm | 1100mm | 1100mm | 1100mm |
| 尾座套筒直徑 | Diameter of tailstock sleeve | Ø260mm | ||||
| 刀架位移*大距離 | Max distance of moving tool-post | |||||
| 縱向 | Longitude | 兩頂尖距 Admits between -600mm | ||||
| 橫向 | Transverse | 800mm | 800mm | 800mm | 800mm | 800mm |
| 主軸轉速范圍（級數） | Spindle speeds(Number) | 3.15-315r/min or 2.5-250(21)r/min or 2-200r/min 5-20 15-60 25-100 65-250 | ||||
| 主電機功率 | Main motor power | 30kw | ||||
| 快速移動速度 | Speed of high-speed movement | |||||
| 縱向 | Longitude | 4000mm/min | ||||
| 橫向 | Transverse | 3000mm/min | ||||
| 刀架裝刀數（自動換刀） | Tool numbers on tool-post | 4 （6、8 可選 optional） | ||||
| 定位精度 | Positioning accuracy | |||||
| 縱向 | Longitude | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
| 橫向 | Transverse | 0.03mm | 0.03mm | 0.03mm | 0.03mm | 0.03mm |
| 機床重復定位精度 | Repeatability | |||||
| 縱向 | Longitude | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm |
| 橫向 | Transverse | ±0.012mm | ±0.012mm | ±0.012mm | ±0.012mm | ±0.012mm |
| 刀架重復定位精度 | Repeatability accuracy of tool-post | ±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm |
| 凈重（KG） | NET WEIGHT | |||||
| SK61168*4000mm | SK61168*4000mm | 22000kg | 22000kg | 22000kg | 22000kg | 22000kg |
| 外形尺寸（長*寬*高） | FLOOR SPACE(L*W*H) | |||||
| SK61168*4000mm | SK61168*4000mm | 7300*3000*2500 | ||||
