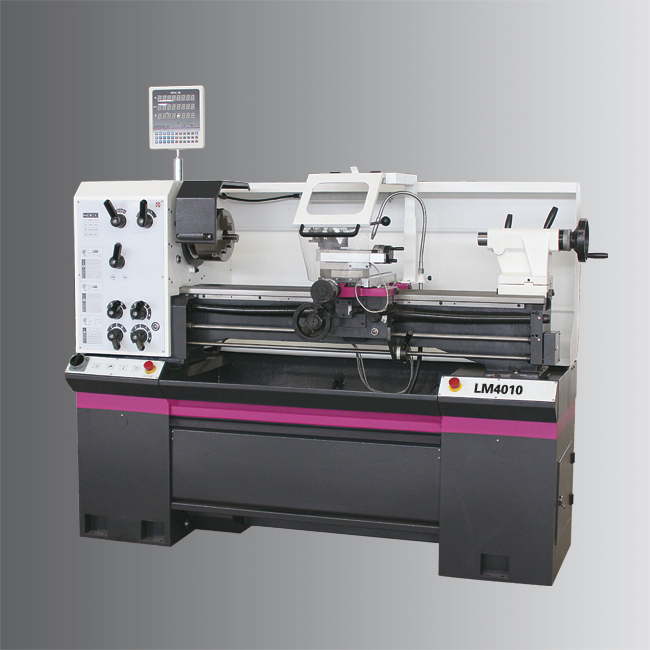

型號 Model TYK4010 貨號 Item No. P4640300 電機功率 Motor power 2.2kw 水泵電機功率 Motor coolant pump 100w 主軸電機功率 Spindle Motor 2.2kw 主軸錐度 Spindle taper MK4 主軸類型 Spindle seat D5 主軸通孔直徑 Spindle drilling, rod passage Ø53mm 主軸中心高 Centre height 200mm 主軸中心距 Centre width 1000mm 床身上*大回轉直徑 Turning Ø over lathe bed Ø400mm 拖板上*大回轉直徑 Turning Ø over cross slide Ø250mm 主軸轉速 Spindle speed 2000/1255/755/460/300/190/155/70 rpm 檔位數 steps of spindle 8 小拖板行程 Travel top slide 98mm 中拖板行程 Travel cross slide 185mm 縱向進給范圍 Longitudinal feed in the range of 0.014-0.38mm 橫向進給范圍 Transverse feed in the range of 0.052-1.392mm 公制螺紋范圍 Pitch - Metric in the range of 0.4-7mm 英制螺紋范圍 Pitch - Inch in the range of 56-4 刀架安裝座*大高度 Tool holder seat height (max.) 30m...
