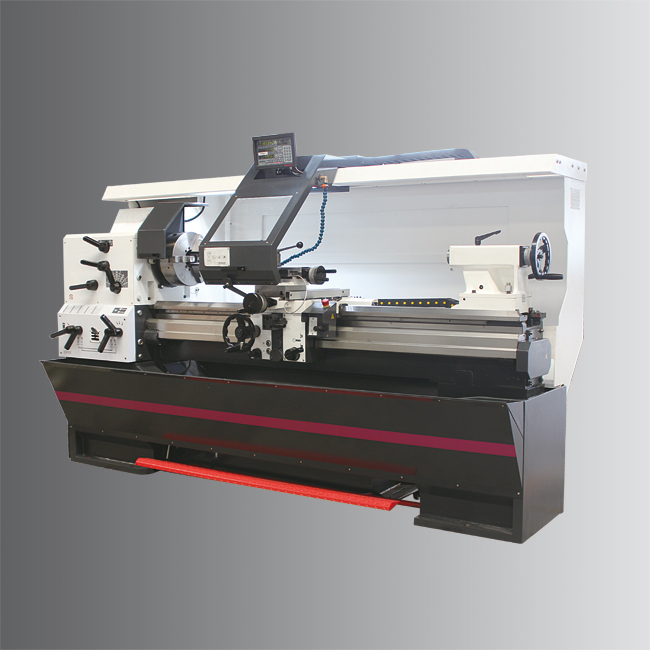

TYK4412/TYK5216/TYK6222型 車床
型號 Model TYK 4412 TYK 5216 TYK 6222 貨號 Item No. P4244300 P4254400 P4262500 電壓 Electrical connection 3 x 400 V ~50 Hz 3 x 400 V ~50 Hz 3 x 400 V ~50 Hz 電機功率 Drive motor 4 KW 5.5 KW 7.5 KW 加工范圍 Work areas 主軸中心高 Centre height 220 mm 260 mm 310 mm 主軸中心距 Centre width 1150 mm 1600 mm 2200 mm 床身上*大回轉直徑 Turning Ø over lathe bed Ø400 mm Ø520 mm Ø620 mm 馬鞍板上*大回轉直徑 Turning Ø in the bed bridge Ø600 mm Ø780 mm Ø880 mm 拖板上*大回轉直徑 Turning Ø over cross slide Ø210 mm Ø324 mm Ø424 mm 花盤前馬鞍板的有效長度 Turning length in the bed bridge from face plate 250 mm 280 mm 200 mm 主軸 Headstock 主軸通孔 Spindle bore Ø52 mm Ø80 mm Ø105 mm 主軸錐度 Main spindle taper MT4 MT7(Ø80)...
分享
相關產品
描述
| 型號 | Model | TYK 4412 | TYK 5216 | TYK 6222 |
| 貨號 | Item No. | P4244300 | P4254400 | P4262500 |
| 電壓 | Electrical connection | 3 x 400 V ~50 Hz | 3 x 400 V ~50 Hz | 3 x 400 V ~50 Hz |
| 電機功率 | Drive motor | 4 KW | 5.5 KW | 7.5 KW |
| 加工范圍 | Work areas | |||
| 主軸中心高 | Centre height | 220 mm | 260 mm | 310 mm |
| 主軸中心距 | Centre width | 1150 mm | 1600 mm | 2200 mm |
| 床身上*大回轉直徑 | Turning Ø over lathe bed | Ø400 mm | Ø520 mm | Ø620 mm |
| 馬鞍板上*大回轉直徑 | Turning Ø in the bed bridge | Ø600 mm | Ø780 mm | Ø880 mm |
| 拖板上*大回轉直徑 | Turning Ø over cross slide | Ø210 mm | Ø324 mm | Ø424 mm |
| 花盤前馬鞍板的有效長度 | Turning length in the bed bridge from face plate | 250 mm | 280 mm | 200 mm |
| 主軸 | Headstock | |||
| 主軸通孔 | Spindle bore | Ø52 mm | Ø80 mm | Ø105 mm |
| 主軸錐度 | Main spindle taper | MT4 | MT7(Ø80) | 1:20(Ø105) |
| 主軸轉速 | Spindle speeds | 40-2200 rpm | 30-1500 rpm | 40-1650 rpm |
| 檔位數 | Speed step | 12 steps | 12 steps | 12 steps |
| 進給及螺紋 | Feed and thread pitch | |||
| 縱向進給范圍 | Longitudinal feed | 0.05 - 0.75 mm/rev | 0.05 - 1.5 mm/rev | 0.05 - 1.5 mm/rev |
| 橫向進給范圍 | Cross feed | 0.025 - 0.375 mm/rev | 0.025 - 0.75 mm/rev | 0.025 - 0.75 mm/rev |
| 公制螺紋范圍 | Metric thread | 0.5 - 7.5 mm/rev | 0.5 - 15 mm/rev | 0.5 - 15 mm/rev |
| 大絲桿規格 | Pitch lead screw | 6 mm | 12 mm | 12 mm |
| 拖板 | Carriage | |||
| 中拖板行程 | Travel cross slide | 300 mm | 350 mm | 350 mm |
| 小拖板行程 | Travel top slide | 130 mm | 170 mm | 170 mm |
| 尾架 | Tailstock | |||
| 尾架套筒直徑 | Quill diameter | Ø58 mm | Ø72 mm | Ø72 mm |
| 尾架套筒行程 | Sleeve stroke | 155 mm | 180 mm | 180 mm |
| 套筒內孔錐度 | Taper in the sleeve | MT4 | MT5 | MT5 |
| 外形尺寸 | Dimensions | |||
| 長寬高 | Length x width x height | / | 2860x1150x1780 mm | 3460x1150x1830 mm |
| 凈重 | Total weight | / | 2470 kg | 2800 kg |
