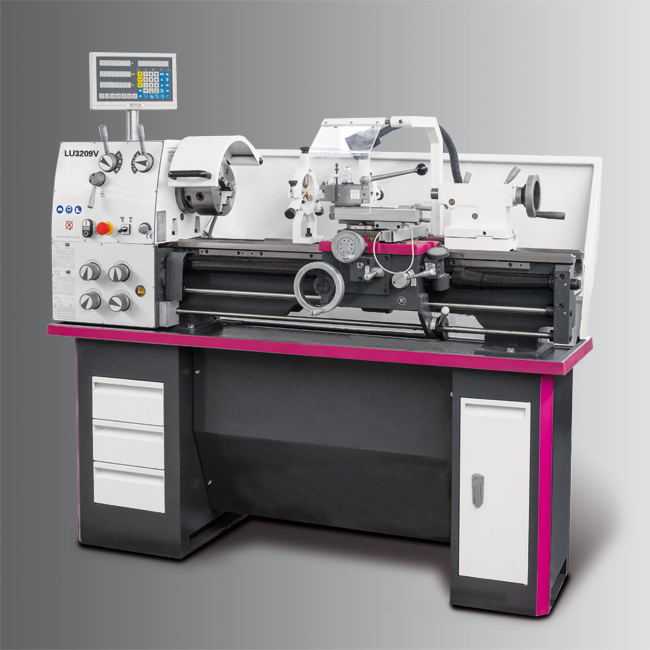

TYK3209V型 車床
Type TYK 3209V Item No P340 3110 Machine datas Electrical connection 230 V / 1 Ph ~50 Hz Motor power 1.5 kW Working areas Centre height 160 mm Centre width 920 mm Turning Ø over lathe bed 320 mm Turning Ø over cross slide 190 mm Turning Ø in the bed bridge 430 mm Length of bed bridge 230 mm Bed width 181 mm Speeds Spindle speed 12 - 2’250 min-1 Number of steps 9 steps Headstock Spindle taper MT 5 Spindle seat Camlock DIN ISO 702-2 Nr. 4 Spindle drilling, rod passage Ø 38 mm Slide Travel top slide 85 mm Travel cross slide 162 mm Longitudinal feed in the range of 0.052 - 1'392 mm/rev; 32 feeds Transverse feed in the range of 0.014 - 0.380 mm/rev ;32 feeds Pitch - Metric in the range of 0.4 - 7 mm;26 thread pitches Pitch - Inch in the range of 56 - ...
