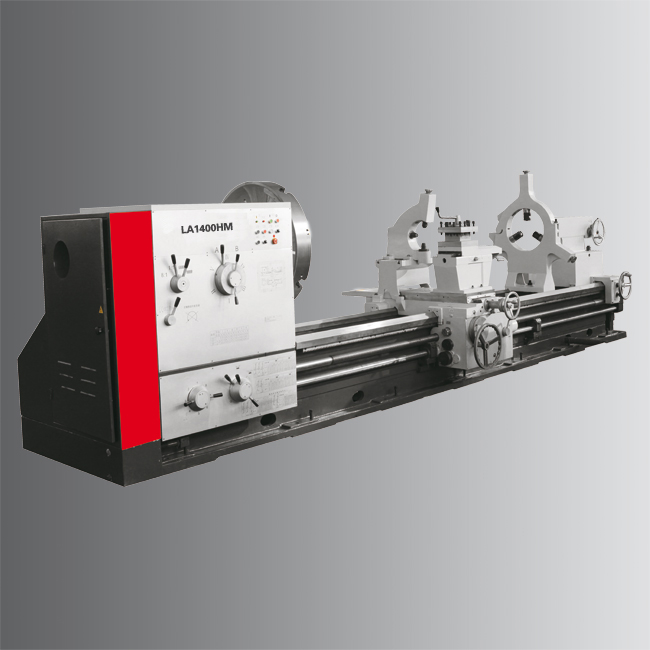

TYK1400HM/TYK1600HM型 車床
型號 MODEL TYK1400HM TYK1600HM 貨號 Item No. P4705100 P4707100 機床*大承重 Max.weight of workpiece 8T 8T 床身上*大回轉直徑 Max.swing over bed Φ1400mm Φ1600mm 橫拖板上*大回轉直徑 Max.swing over cross slide Φ1000mm Φ1200mm 兩尖頂距離 Center distance 1.5m 2m 3m 4m 5m 6m 8m 10m 12m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m 床身寬度 Width of bed 780mm 780mm 床頭箱 HEAD STOCK 主軸孔徑 Spindle hole ∮130mm ∮130mm 主軸錐孔 Spindle taper 140# 140# 主軸轉速范圍 Spindle speeds 3.15-315r/min或2.5-250r/mm.轉數 種數：正21種，反12種 3.15-315r/min或2.5-250r/mm.轉數 種數：正21種，反12種 進給箱 GEAR BOX-THREADS&FEEDS 快速進給：縱向/橫向 Rapid feed:Long/Cross 3400mm/min,1700mm/min 3400mm/min,1700mm/min 刀架 TOOL-POST 主軸中心至刀具安裝面距離 Distance between Center & Tool 48mm 48mm 刀具截面 Tool sect...
分享
相關產品
描述
| 型號 | MODEL | TYK1400HM | TYK1600HM |
| 貨號 | Item No. | P4705100 | P4707100 |
| 機床*大承重 | Max.weight of workpiece | 8T | 8T |
| 床身上*大回轉直徑 | Max.swing over bed | Φ1400mm | Φ1600mm |
| 橫拖板上*大回轉直徑 | Max.swing over cross slide | Φ1000mm | Φ1200mm |
| 兩尖頂距離 | Center distance | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
| 床身寬度 | Width of bed | 780mm | 780mm |
| 床頭箱 | HEAD STOCK | ||
| 主軸孔徑 | Spindle hole | ∮130mm | ∮130mm |
| 主軸錐孔 | Spindle taper | 140# | 140# |
| 主軸轉速范圍 | Spindle speeds | 3.15-315r/min或2.5-250r/mm.轉數 種數：正21種，反12種 | 3.15-315r/min或2.5-250r/mm.轉數 種數：正21種，反12種 |
| 進給箱 | GEAR BOX-THREADS&FEEDS | ||
| 快速進給：縱向/橫向 | Rapid feed:Long/Cross | 3400mm/min,1700mm/min | 3400mm/min,1700mm/min |
| 刀架 | TOOL-POST | ||
| 主軸中心至刀具安裝面距離 | Distance between Center & Tool | 48mm | 48mm |
| 刀具截面 | Tool section | 45*45mm | 45*45mm |
| 拖板 | CARRIAGE | ||
| 中拖板*大行程 | Cross slide travel | 650mm | 650mm |
| 小拖板*大行程 | Top slide travel | 280mm | 280mm |
| 尾座 | TAILSTOCK | ||
| 尾座套筒直徑 | Sleeve diameter | ∮160mm | ∮160mm |
| 尾座套筒錐度 | Sleeve taper | 80# or MT6 | 80# or MT6 |
| 尾座套筒*大行程 | Sleeve travel | 300mm | 300mm |
| 電機 | MOTOR | ||
| 主電機 | Main motor | 22KW | 22KW |
| 冷卻泵電機 | Coolant motor | 0.15KW | 0.15KW |
| 快速進給電機 | Rapid feed motor | 1.5KW | 1.5KW |
