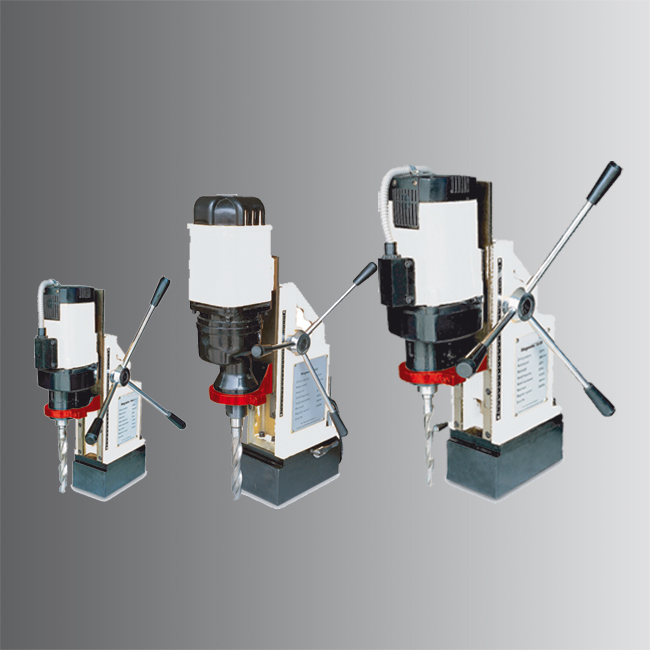

TYK19/TYK25/TYK38型 磁座鉆
型號 Model TYK19 TYK25 TYK38 產品編號 Code No. D3601900 D3602500 D3603800 鉆孔直徑 Max.drilling capacity ø19mm ø23mm ø32mm 額定轉速 Rated speed 350r/min 330r/min 150r/min 額定電壓 Rated voltage 220V 220V 380V 額定頻率 Rated frequency 50Hz 50Hz 50Hz 額定輸入功率 Rated output power 850W 1100W 1600W *大行程 Max.travel 180mm 180mm 220mm 電磁鐵吸力 Electromagnetism 11000N 13000N 16000N 包裝尺寸 Packing size 410x200x510mm 410x200x510mm 530x280x680mm 凈重 Net weight 30kg 30kg 50kg...
分享
相關產品
描述
| 型號 | Model | TYK19 | TYK25 | TYK38 |
| 產品編號 | Code No. | D3601900 | D3602500 | D3603800 |
| 鉆孔直徑 | Max.drilling capacity | ø19mm | ø23mm | ø32mm |
| 額定轉速 | Rated speed | 350r/min | 330r/min | 150r/min |
| 額定電壓 | Rated voltage | 220V | 220V | 380V |
| 額定頻率 | Rated frequency | 50Hz | 50Hz | 50Hz |
| 額定輸入功率 | Rated output power | 850W | 1100W | 1600W |
| *大行程 | Max.travel | 180mm | 180mm | 220mm |
| 電磁鐵吸力 | Electromagnetism | 11000N | 13000N | 16000N |
| 包裝尺寸 | Packing size | 410x200x510mm | 410x200x510mm | 530x280x680mm |
| 凈重 | Net weight | 30kg | 30kg | 50kg |
